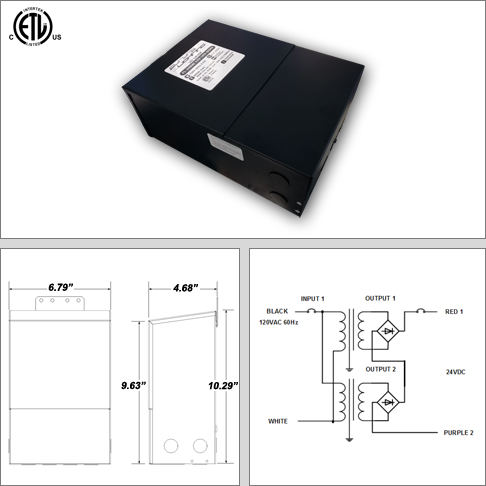

Transformers>>FL-600W-24V-LED-DIM1
NEW FL-600W-24V-LED-DIM1
Transformer
Dimmable with any MLV, CL dimmer, as long as, dimmer's min. load is
covered.
Temperature class B(130C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105C
Thermal manually reset primary breaker 10A
Thermal manually reset secondary breaker 25A
Housing
The actual transformer 600W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 12 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75C at 45C ambient and fully
loaded
Dimensions (inch): H = 10.29, W = 6.79, D = 4.68
Weight (LBs): 18
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 6A
Output voltage without load: 25VDC
Output voltage fully loaded: 23.5VDC
Max. Total Wattage: 600W
Max. Output Current: 25A
Efficiency: 93%
