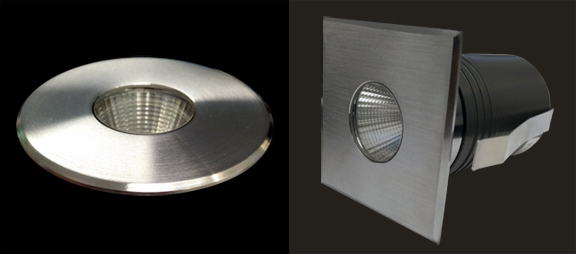

FL-ING-0125-R/S-3K Warm White ETL Listed LED Inground Light
Specifications For Part Numbers: FL-ING-0125S-3K (Square) & FL-ING-0125R-3K (Round)
UNIT SPECIFICATIONS
LIGHT SOURCE: 1X 5.5W SHARP COB DIODE
REFLECTOR: R7
INPUT VOLTAGE: 24VDC
TYPICAL LUMINANCE (LM): 294
HOUSING: 12# DIE-CASTING GREY POWDER COATED ALUMINUM
T=60-80ΜM ADHESION OF ISO CLASS 1/ASTM CLASS 4B
FRONT RING: STAINLESS STEEL SUS 316#
GLASS: STEP TEMPERED GLASS.T=7MM
GLASS PRESSURE CAPACITY: FULL AREA=633KGS
REFLECTOR: OPTICAL REFLECTOR EFFICIENCY≥90%
CABLE GLAND: MOLDING SHAPED SILICONE SEAL
GASKET: MOLDING SHAPED SILICONE SEAL
LED: MULTI CHIP ON BOARD LED
OPERATING TEMPERATURE: -20℃~40℃
MOUNTING SLEEVE: 065 PVC
POWER CABLE: 24V: INPUT: L=0.5M
OUTDOOR RATING: IP67
ROHS COMPLIANT
ETL LISTED

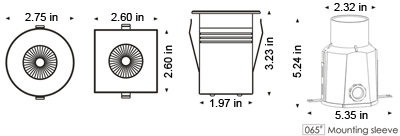

UNIT DIMENSIONS
