FL-ING-0125RHP-RGBWW ETL Listed LED Inground Light
Specifications For Part Number: FL-ING-0125RHP-RGBWW (Round)
UNIT SPECIFICATIONS
LIGHT SOURCE: 3X 4W RGBWW 4IN1 COB DIODE
LENS: A23
INPUT VOLTAGE: 24VDC
TYPICAL CONSUMPTION (W): 14
TYPICAL LUMINANCE (LM): 430
HOUSING: 12# DIE-CASTING GREY POWDER COATED ALUMINUM
T=60-80ΜM ADHESION OF ISO CLASS 1/ASTM CLASS 4B
FRONT RING: HARD CHROMEPLATED STAINLESS STEEL SUS 316#
GLASS: STEP TEMPERED GLASS.T=8MM
GLASS PRESSURE CAPACITY: FULL AREA=2274KGS
GASKET: MOLDING SHAPED SILICONE SEAL
CABLE GLAND: IP-68 PG-9 PVC
OPERATING TEMPERATURE: -20℃~40℃
MOUNTING SLEEVE: ABS 016#
POWER CABLE: H05RN-F 5X0.5MM2 L=0.5M (FOR RGBW)
OUTDOOR RATING: IP67
ROHS COMPLIANT
ETL LISTED

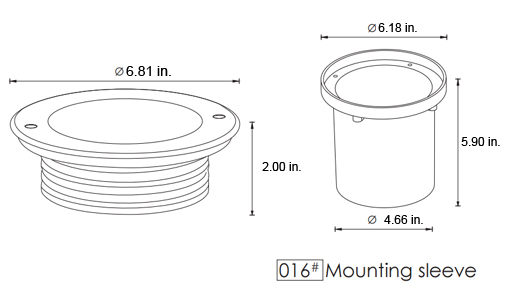

UNIT DIMENSIONS
UNIT SPECIFICATIONS |
|---|
|
LIGHT SOURCE: 3X 4W RGBWW 4IN1 COB DIODE LENS: A23 INPUT VOLTAGE: 24VDC TYPICAL CONSUMPTION (W): 14 TYPICAL LUMINANCE (LM): 430 HOUSING: 12# DIE-CASTING GREY POWDER COATED ALUMINUM T=60-80ΜM ADHESION OF ISO CLASS 1/ASTM CLASS 4B FRONT RING: HARD CHROMEPLATED STAINLESS STEEL SUS 316# GLASS: STEP TEMPERED GLASS.T=8MM GLASS PRESSURE CAPACITY: FULL AREA=2274KGS GASKET: MOLDING SHAPED SILICONE SEAL CABLE GLAND: IP-68 PG-9 PVC OPERATING TEMPERATURE: -20℃~40℃ MOUNTING SLEEVE: ABS 016# POWER CABLE: H05RN-F 5X0.5MM2 L=0.5M (FOR RGBW) OUTDOOR RATING: IP67 ROHS COMPLIANT ETL LISTED UNIT DIMENSIONS |
