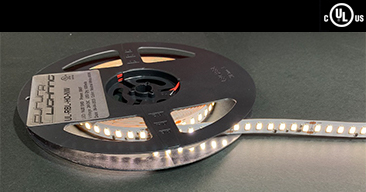

Our UL-RBL-HO-XX Strip is designed for applications where High Lumen Output is required. At 20,000 lumens per Roll and a CRI above 90, this strip provides the quality and brightness needed for the most demanding jobs.

TECHNICAL PARAMETERS:

Part Number: UL-RBL-HO-XX (IP20) , UL-STRIP-HO-XX (IP67)
Led Diode: SMD 5630
CRI: >90
LED Quantity: 126 LEDs/M
Lumens: 4000LM/m
IP Rating: IP20, IP67
Voltage: 24VDC (With Temperature Sensor)
Wattage: 8W/ft
Cuttable: Every 2”
Connectors: Wires must be soldered onto PCB
Dimensions: 16.25 FT(L) x 12MM (W)
Dimmable: Yes, if used with dimmable driver
Beam Angle: 120 Degrees
Max Run from one feed: 10M (32.5 ft)
Approvals: UL, CUL, CE, ROHS
Colors: WW-2700K (Warm White, 27000K), WW (Warm White, 3000K), NW (Neutral White, 4000K), W (Cool White, 6000K)

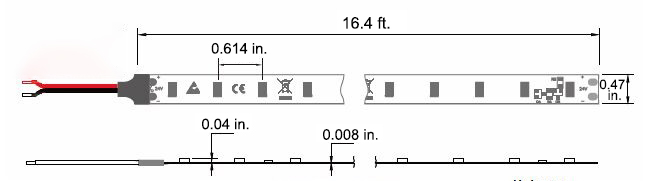

DIMENSIONS:



ACCESSORIES TO USE WITH THIS RIBBON:

MUST USE TRACK WITH THIS STRIP. All tracks will work except TRACK19-N and TRACK20-N
